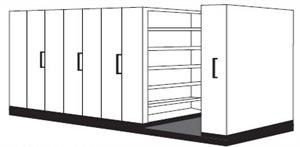

4 Bays - 4 Bays @ 400mm deep
2560mm long - Aisle width 860mm
900mm = 21.6 lineal metres - 1200mm = 28.8 lineal metres
6 Bays - 6 Bays @ 300mm deep
2560mm long - Aisle width 610mm
900mm = 32.4 lineal metres - 1200mm = 43.2 lineal metres
5 Bays - 2 Bays @ 400mm deep - 3 Bays @ 300mm deep
2560mm long - Aisle width 735mm
900mm = 27.0 lineal metres - 1200mm = 36.0 lineal metres

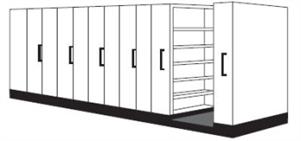

6 Bays - 6 Bays @ 400mm deep
3200mm long - Aisle width 650mm
900mm = 32.4 lineal metres - 1200mm = 43.2 lineal metres
8 Bays - 8 Bays @ 300mm deep
3200mm long - Aisle width 600mm
900mm = 43.2 lineal metres - 1200mm = 57.6 lineal metres
7 Bays - 3 Bays @ 400mm deep - 4 Bays @ 300mm deep
3200mm long - Aisle width 650mm
900mm = 32.4 lineal metres - 1200mm = 43.2 lineal metres

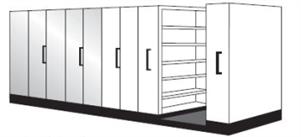

8 Bays - 8 Bays @ 400mm deep
4160mm long - Aisle width 760mm
900mm = 43.2 lineal metres - 1200mm = 57.6 lineal metres
11 Bays - 11 Bays @ 300mm deep
4160mm long - Aisle width 585mm
900mm = 59.4 lineal metres - 1200mm = 79.2 lineal metres
9 Bays - 5 Bays @ 400mm deep - 4Bays @ 300mm deep
4160mm long - Aisle width 760mm
900mm = 43.2 lineal metres - 1200mm = 57.6 lineal metres
The FileMax Rolling Filing System is a durable, quality, Australian made product that comes in a variety of sizes and colours to suite any decor or fit out.
Displayed below are standard configuration, although don't discount a ShelvMaster FileMax if your layout doesn't quite fit right to what you see here.
The beauty of the FileMax is it's huge potential for custom configuration. From shortening a unit to as little as 3 bays long to lengthening the unit to as many bays as will fit within your area.
FileMax units can be joind side by side to create 2, 3 or 4 bays deep configurations, and still being as short or as long as your area will allow. The options are endless, but it's a long way to the end with a ShelvMaster FileMax Rolling Filing System
Displayed below are standard configuration, although don't discount a ShelvMaster FileMax if your layout doesn't quite fit right to what you see here.
The beauty of the FileMax is it's huge potential for custom configuration. From shortening a unit to as little as 3 bays long to lengthening the unit to as many bays as will fit within your area.
FileMax units can be joind side by side to create 2, 3 or 4 bays deep configurations, and still being as short or as long as your area will allow. The options are endless, but it's a long way to the end with a ShelvMaster FileMax Rolling Filing System

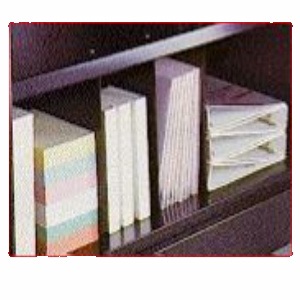

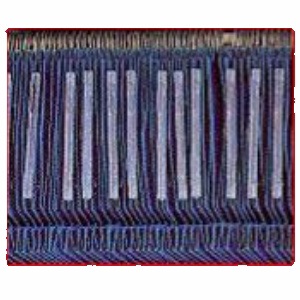

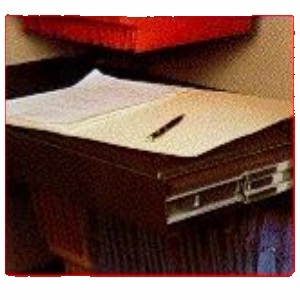

No matter what you intend to store in your new FileMax Rolling Filing System, ShelvMaster has accessories to suit.
If your not sure what accessories would best suit your filing requirements, don't hesitate to contact ShelvMaster.
If your not sure what accessories would best suit your filing requirements, don't hesitate to contact ShelvMaster.

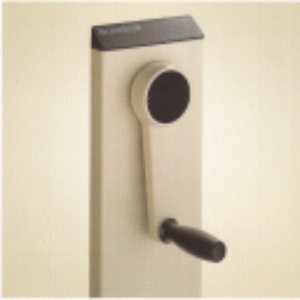

Gravity Activated, the Safe Wind handle will only engage after the handle is turned through 90 degrees, this ensures the handle will not engage and spin when the attached bay is moved in conjunction with another bay.

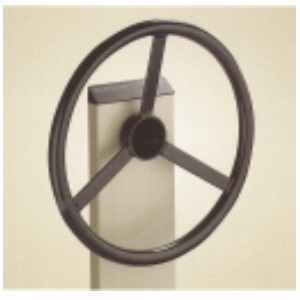

Positively engaged into the mechanical assist consul, the wheel drive handle asists greatly in moving each individual bay no matter the weight involved.
