Waratah cupboards meet the future challenges of modern office
design and storage requirements, reducing wasted space
and file retrieval time.
design and storage requirements, reducing wasted space
and file retrieval time.
An adaptable and economical answer
to multi-purpose storage.
to multi-purpose storage.
The simple solution for tough, cost effective and reliable storage
in areas where access space is restricted.
in areas where access space is restricted.
Brownbuilt manufactures Australia’s largest range of metal lockers
which combine strength, quality and flexibility.
which combine strength, quality and flexibility.
Waratah cupboards combine the access of open shelving with the security and privacy of hinged door cupboards. Brownbuilt Waratah cupboards are available in a range of sizes, ranging from “Under-desk” units up to 1980mm high units, in three widths to suit individual layouts. Waratah cupboards offer 25mm vertical shelf adjustment to maximise internal space utilisation. A wide selection of versatile filing accessories is available to meet individual storage needs and provide multi-media filing capability.
The Waratah tambour door system recedes fully into the cupboard carcass allowing Waratah to be positioned where conventional hinged door cupboards would impede personnel movement in areas such as narrow aisles, corridors and corners. The tambour doors are fully concealed by internal metal uprights ensuring that the cupboard is fully accessible when open.
The Waratah tambour door system recedes fully into the cupboard carcass allowing Waratah to be positioned where conventional hinged door cupboards would impede personnel movement in areas such as narrow aisles, corridors and corners. The tambour doors are fully concealed by internal metal uprights ensuring that the cupboard is fully accessible when open.
External Dimensions:
Heights: 680mm / 1020mm / 1330mm / 1980mm
Widths: 900mm / 1050mm / 1200mm
Depth: 475mm
Shelf Dimensions:
750mm / 900mm / 1050mm wide
400mm deep
Shelf Capacity: Universally Distributed Load
750mm / 900mm = 110kg / shelf
1050mm = 75kg / shelf
Heights: 680mm / 1020mm / 1330mm / 1980mm
Widths: 900mm / 1050mm / 1200mm
Depth: 475mm
Shelf Dimensions:
750mm / 900mm / 1050mm wide
400mm deep
Shelf Capacity: Universally Distributed Load
750mm / 900mm = 110kg / shelf
1050mm = 75kg / shelf

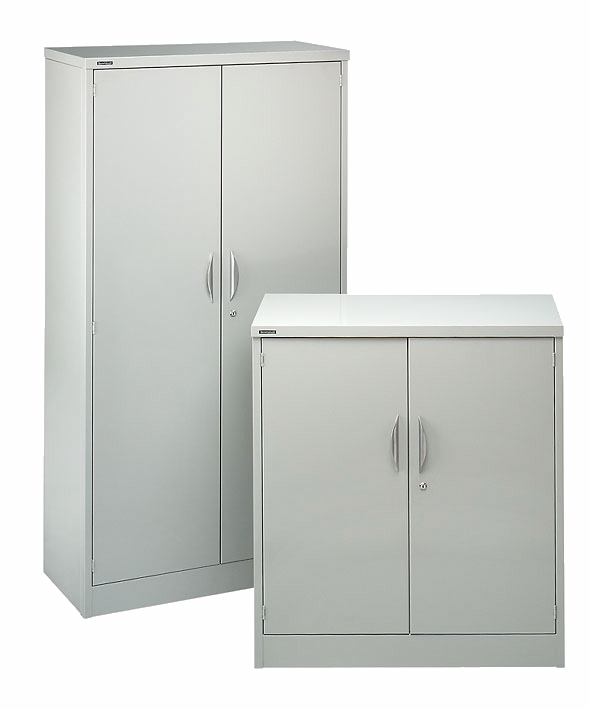

Brownbuilt Swing Door Cupboards have been developed to carry anything from office stationery to light machinery parts and tools. They can be configured as shelving units, multi-media storage units, wardrobes or as combinations. The contemporary exterior design features high quality contoured alloy door handles for ease of use and individual style.
Brownbuilt offers design strength that will stand up to the test of time. Integrated door frames with welded tops, fixed bottom shelves and shelf load capacity of 110kg (UDL) ensure a strong and stable storage unit. Internal storage flexibility is achieved with 25mm vertical shelf adjustment and a simple Magiclip support. A wide range of versatile storage accessories is also available.
Security is a key design issue with metal reinforced doors, welded internal door hinges and a key activated 3 point locking system.
Brownbuilt offers design strength that will stand up to the test of time. Integrated door frames with welded tops, fixed bottom shelves and shelf load capacity of 110kg (UDL) ensure a strong and stable storage unit. Internal storage flexibility is achieved with 25mm vertical shelf adjustment and a simple Magiclip support. A wide range of versatile storage accessories is also available.
Security is a key design issue with metal reinforced doors, welded internal door hinges and a key activated 3 point locking system.
External Dimensions:
Heights: 1021mm / 1800mm / 1998mm
Width: 910mm
Depth: 450mm
Shelf Dimensions:
900mm x 400mm
Shelf Capacity: Universally Distributed Load
110kg per shelf
Heights: 1021mm / 1800mm / 1998mm
Width: 910mm
Depth: 450mm
Shelf Dimensions:
900mm x 400mm
Shelf Capacity: Universally Distributed Load
110kg per shelf
Standard Features:
Internal carcass assembly
3-point key activated locking system
Alloy finger grip handles
Internally fixed hinges
Integrated structural door frame assembly
Welded internal door stiffeners
25mm vertical shelf adjustment
Wide range of filing accessories
Wardrobe and combination wardrobe variants
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Internal carcass assembly
3-point key activated locking system
Alloy finger grip handles
Internally fixed hinges
Integrated structural door frame assembly
Welded internal door stiffeners
25mm vertical shelf adjustment
Wide range of filing accessories
Wardrobe and combination wardrobe variants
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years

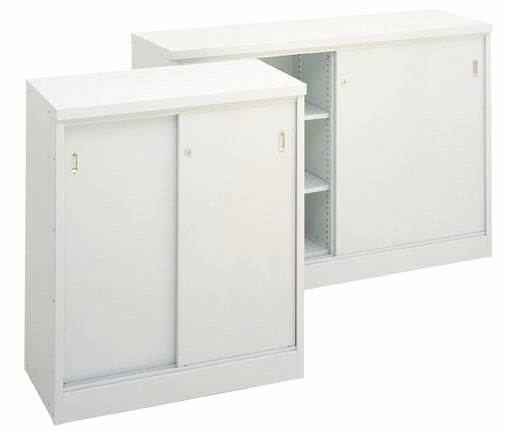

Brownbuilt sliding door cupboards have been proven performers in organisations of all sizes providing secure shelf-based storage and
low-cost additional work surfaces.
Shelf adjustment in 25mm increments maximises internal storage space with a simple shelf clip mechanism. The C9S model utilises a centre partition and four adjustable shelves so that load capacity is not compromised and to increase internal storage flexibility
A durable riveted metal construction with welded shelf support channels means that Brownbuilt sliding door cupboards can withstand a lifetime of use. Metal doors slide easily on nylon wheels and guides in metal tracks and can be locked for security.
low-cost additional work surfaces.
Shelf adjustment in 25mm increments maximises internal storage space with a simple shelf clip mechanism. The C9S model utilises a centre partition and four adjustable shelves so that load capacity is not compromised and to increase internal storage flexibility
A durable riveted metal construction with welded shelf support channels means that Brownbuilt sliding door cupboards can withstand a lifetime of use. Metal doors slide easily on nylon wheels and guides in metal tracks and can be locked for security.
External Dimensions:
Height: 1021mm
Width: 890mm / 1525mm
Depth: 460mm
Shelf Dimensions:
875mm / 750mm wide
370mm deep
Shelf Capacity: Universally Distributed Load
110kg
Height: 1021mm
Width: 890mm / 1525mm
Depth: 460mm
Shelf Dimensions:
875mm / 750mm wide
370mm deep
Shelf Capacity: Universally Distributed Load
110kg
Standard Features:
Durable riveted construction
Single point key-locking
Recessed aluminium finger-pull handles
Sliding metal doors
Door-mounted nylon guide wheels and buffers
Formed metal door track
25mm vertical shelf adjustment
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Durable riveted construction
Single point key-locking
Recessed aluminium finger-pull handles
Sliding metal doors
Door-mounted nylon guide wheels and buffers
Formed metal door track
25mm vertical shelf adjustment
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Strength & Stability
Waratah cupboards are manufactured with a high quality metal construction for strength and durability. Welded internal
door-frame assembly and bottom support channel, with bolted internal uprights, provide superior carcass rigidity.
Waratah cupboards are manufactured with a high quality metal construction for strength and durability. Welded internal
door-frame assembly and bottom support channel, with bolted internal uprights, provide superior carcass rigidity.
Smooth Operation
Double-walled PVC door slat construction features internal webbing to ensure door stability, and prevent jamming. Waratah
doors glide easily along durable,
injection-moulded tracks with a cambered track profile.
Double-walled PVC door slat construction features internal webbing to ensure door stability, and prevent jamming. Waratah
doors glide easily along durable,
injection-moulded tracks with a cambered track profile.
Key-Locking Security
A central key-locking system operates in an aluminium reinforced tambour slat to provide security for stored documents and files. The special PVC formulation of Waratah tambour slats is fire retardant for additional protection.
A central key-locking system operates in an aluminium reinforced tambour slat to provide security for stored documents and files. The special PVC formulation of Waratah tambour slats is fire retardant for additional protection.
Whatever your needs, a Brownbuilt locker will accommodate them. Brownbuilt manufactures an unmatched range of metal lockers, which
combine strength and quality. The wide range of sizes and configurations make Brownbuilt lockers ideal for diverse storage applications.
Brownbuilt lockers can be grouped into banks for stability or placed back to back to conserve space. Multiple door configurations mean that Brownbuilt lockers can be specified to maximise your particular storage space.
Brownbuilt lockers are manufactured under a quality system complying with ISO 9001 and designed with numerous features to ensure long-term durability.
Brownbuilt lockers are painted using modern thermo-set powder coatings, which are more durable and scratch resistant than baked enamel. A range of standard colours allows integration into most office and industrial environments.
combine strength and quality. The wide range of sizes and configurations make Brownbuilt lockers ideal for diverse storage applications.
Brownbuilt lockers can be grouped into banks for stability or placed back to back to conserve space. Multiple door configurations mean that Brownbuilt lockers can be specified to maximise your particular storage space.
Brownbuilt lockers are manufactured under a quality system complying with ISO 9001 and designed with numerous features to ensure long-term durability.
Brownbuilt lockers are painted using modern thermo-set powder coatings, which are more durable and scratch resistant than baked enamel. A range of standard colours allows integration into most office and industrial environments.
Latchlock
Rigid alloy construction
comprises a finger grip handle with the capability to securely padlock the handle to the lock bezel housing (padlock not
supplied).
Rigid alloy construction
comprises a finger grip handle with the capability to securely padlock the handle to the lock bezel housing (padlock not
supplied).
3-Point Locking
Mechanism
Fitted to full-length doors
locking top, bottom and centre, featuring a central cam and metal locking rods. Tiered doors supplied with single-point
locking only.
Mechanism
Fitted to full-length doors
locking top, bottom and centre, featuring a central cam and metal locking rods. Tiered doors supplied with single-point
locking only.
Sloping Top
Optional 30° sloping tops
available to prevent locker tops being used for storage and to facilitate cleaning. (45° sloping tops available on application).
Optional 30° sloping tops
available to prevent locker tops being used for storage and to facilitate cleaning. (45° sloping tops available on application).
Hat Shelf, Coat Rail, Coat Hook
Firmly fixed shelf for multi-purpose storage (full length lockers only). Durable plastic coated coat rails and two sliding galvanised coat hooks (full length and two tier lockers).
Firmly fixed shelf for multi-purpose storage (full length lockers only). Durable plastic coated coat rails and two sliding galvanised coat hooks (full length and two tier lockers).
External Dimensions:
Height:
960mm (Half-height two-tier locker)
1800mm
1974mm (DPI Locker)
Width: 300mm / 375mm
Depth: 450mm
Locker Types:
Full-length (Single door)
Two-tier
Three-tier
Four-tier
Eight-tier (375mm wide only)
DPI locker (Single door 375mm wide)
Half-height two-tier (375mm wide only)
Height:
960mm (Half-height two-tier locker)
1800mm
1974mm (DPI Locker)
Width: 300mm / 375mm
Depth: 450mm
Locker Types:
Full-length (Single door)
Two-tier
Three-tier
Four-tier
Eight-tier (375mm wide only)
DPI locker (Single door 375mm wide)
Half-height two-tier (375mm wide only)
Locker Configurations:
Initial (Single)/Bank of 2/Bank of 3
Note: Bank of 3 not available for 4 and 8 tier lockers
Locking Options:
Key locking
Latchlock with padlock facility
3-point locking on full length lockers
Single-point locking on tiered lockers
DPI locker available with key locking only
Initial (Single)/Bank of 2/Bank of 3
Note: Bank of 3 not available for 4 and 8 tier lockers
Locking Options:
Key locking
Latchlock with padlock facility
3-point locking on full length lockers
Single-point locking on tiered lockers
DPI locker available with key locking only
Whatever your needs, a Brownbuilt locker will accommodate them. Brownbuilt manufactures an unmatched range of metal lockers, which combine strength and quality.
The wide range of sizes and configurations make Brownbuilt lockers ideal for diverse storage
applications
The wide range of sizes and configurations make Brownbuilt lockers ideal for diverse storage
applications
Standard Features:
Internal carcass asembly
Welded carcass assembly
Key locking
Fully retractable tambour door system
Double-wall PVC slat doors with internal webbing
Injection-moulded door track
Fixed metal internal uprights
25mm vertical shelf adjustment
Wide range of accessories
Material Thickness: 1.00mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Internal carcass asembly
Welded carcass assembly
Key locking
Fully retractable tambour door system
Double-wall PVC slat doors with internal webbing
Injection-moulded door track
Fixed metal internal uprights
25mm vertical shelf adjustment
Wide range of accessories
Material Thickness: 1.00mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Compartment Dimensions: Height
Full length locker: 1425mm
Two tier locker: 825mm
Three tier locker 550mm
Four tier locker: 410mm
Eight tier locker: 190mm
Compartment Dimensions: Width
Width: 232mm / 307mm
Depth: 435mm
Full length locker: 1425mm
Two tier locker: 825mm
Three tier locker 550mm
Four tier locker: 410mm
Eight tier locker: 190mm
Compartment Dimensions: Width
Width: 232mm / 307mm
Depth: 435mm
Standard Features:
Durable metal construction
Riveted construction
Internally fixed hinges
Welded door stiffeners
Optional key locking/latchlock systems
Riveted top, intermediate and bottom shelves
Coat rail and coat hooks
Wide range of sizes and configurations
Material Thickness: 0.8mm
DPI locker constructed from galvanised steel
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Durable metal construction
Riveted construction
Internally fixed hinges
Welded door stiffeners
Optional key locking/latchlock systems
Riveted top, intermediate and bottom shelves
Coat rail and coat hooks
Wide range of sizes and configurations
Material Thickness: 0.8mm
DPI locker constructed from galvanised steel
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
