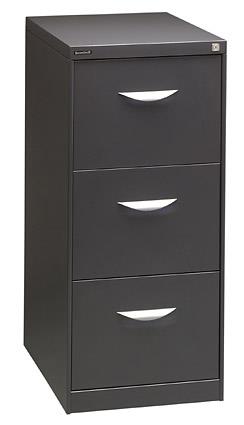

Brownbuilt’s Anti-tilt filing cabinet features a sturdy welded support frame, fully-welded top and full-depth zinc base plate for strength and
stability. A full height painted drawer body design ensures secure file storage with the option of a drawer file rack divider. Drawers can be completely removed and replaced for relocation using an innovative lever-disconnect mechanism. The contemporary exterior design features a high quality contoured alloy drawer.
A modern, 2-stage ball bearing runner system gives smoother, quieter drawer operation, with complete access for file retrieval. Testing with a 30kg load for over 50,000 drawer cycles ensures that this filing cabinet can stand up to the toughest treatment.
The runner system incorporates a drawer lock-out mechanism as standard, which stops tilting by preventing more than one drawer
being open at the same time. Runner buffers reduce metal-to-metal contact and prevent drawers drifting open when fully closed for
additional operator safety.
stability. A full height painted drawer body design ensures secure file storage with the option of a drawer file rack divider. Drawers can be completely removed and replaced for relocation using an innovative lever-disconnect mechanism. The contemporary exterior design features a high quality contoured alloy drawer.
A modern, 2-stage ball bearing runner system gives smoother, quieter drawer operation, with complete access for file retrieval. Testing with a 30kg load for over 50,000 drawer cycles ensures that this filing cabinet can stand up to the toughest treatment.
The runner system incorporates a drawer lock-out mechanism as standard, which stops tilting by preventing more than one drawer
being open at the same time. Runner buffers reduce metal-to-metal contact and prevent drawers drifting open when fully closed for
additional operator safety.
Load Capacity: - 30kg per drawer
Standard Features:
Alloy finger-grip drawer handle
Compact lock
Slimline cabinet carcass
Internal cabinet assembly
Welded internal cabinet frame
Zinc base plate
Full height painted drawer body
Full extension ball bearing runner system
Individual drawer lock-out mechanism
Runners tested to 50,000 cycles with 30kg load
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Standard Features:
Alloy finger-grip drawer handle
Compact lock
Slimline cabinet carcass
Internal cabinet assembly
Welded internal cabinet frame
Zinc base plate
Full height painted drawer body
Full extension ball bearing runner system
Individual drawer lock-out mechanism
Runners tested to 50,000 cycles with 30kg load
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Legato cabinets feature a 2-stage ball bearing runner design that operates smoothly even when fully loaded. Drawers can be completely extended for access to all files, and can easily be removed if required for relocation. A drawer lock-out mechanism allows single drawer
access and prevents cabinets from tilting.
A full height zincseal drawer body design fully supports files and prevents documents from falling into the cabinet. PVC strips fitted to the drawer sides allow ease of file movement.
Legato drawers feature a dished finger grip section with a full width handle and card holder for ease of operation and file location. A fully seam welded top and slimline carcass construction without exposed assembly fittings ensure a high quality exterior finish.
The Legato's runner assembly features a standard drawer lock-out mechanism and has been load tested in excess of 50,000 cycles with a 30kg load for maximum durability.
access and prevents cabinets from tilting.
A full height zincseal drawer body design fully supports files and prevents documents from falling into the cabinet. PVC strips fitted to the drawer sides allow ease of file movement.
Legato drawers feature a dished finger grip section with a full width handle and card holder for ease of operation and file location. A fully seam welded top and slimline carcass construction without exposed assembly fittings ensure a high quality exterior finish.
The Legato's runner assembly features a standard drawer lock-out mechanism and has been load tested in excess of 50,000 cycles with a 30kg load for maximum durability.
The latest in a series of filing cabinets which lead the Australian
market in both engineering and design.
market in both engineering and design.

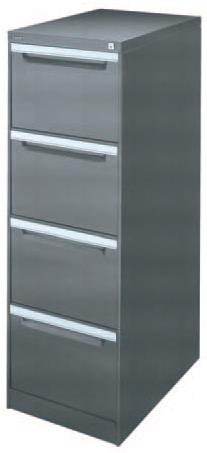

Legato® is a fully featured cabinet that has been designed to provide
practical and reliable storage to make the most of your office space.
practical and reliable storage to make the most of your office space.
Load Capacity: - 30kg per drawer
Standard Features:
Full width aluminium drawer handle
Cardholder facility in handle
Compact lock
Slimline cabinet carcass
Internally assembled cabinet construction
Welded internal cabinet frame
Zinc-coated full-depth base plate
Full extension ball bearing runner system
Runners tested to 50,000 cycles with 30kg load
Individual drawer lock-out mechanism
Full height zincseal drawer body
Full height drawer back
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Standard Features:
Full width aluminium drawer handle
Cardholder facility in handle
Compact lock
Slimline cabinet carcass
Internally assembled cabinet construction
Welded internal cabinet frame
Zinc-coated full-depth base plate
Full extension ball bearing runner system
Runners tested to 50,000 cycles with 30kg load
Individual drawer lock-out mechanism
Full height zincseal drawer body
Full height drawer back
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Combining the strength of full metal construction with an aesthetic
design to enhance any desk or workstation.
design to enhance any desk or workstation.

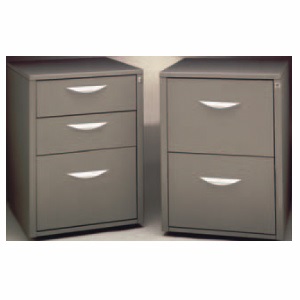

Brownbuilt Mobile Pedestals have been specifically designed for installation under any desk or workstation, with a low profile top, side-mounted lock and low profile castors. An optional counter-weighted base is available to prevent tipping.
Brownbuilt mobile pedestals feature a fully welded top and riveted base assembly to provide superior strength and stability for long term service. Brownbuilt’s metal drawer construction incorporates full height sides and backs to ensure durability and protect contents. File drawers offer the ease, accessibility and capacity of standard front to back foolscap file storage. Drawers glide smoothly on strong two piece runners and can be removed to assist with relocation.
Brownbuilt mobile pedestals can be easily integrated into any office environment with a range of drawer configurations to suit individual applications, attractive alloy handle design, a premium quality metal construction and a wide selection of standard powder coat finishes.
Brownbuilt mobile pedestals feature a fully welded top and riveted base assembly to provide superior strength and stability for long term service. Brownbuilt’s metal drawer construction incorporates full height sides and backs to ensure durability and protect contents. File drawers offer the ease, accessibility and capacity of standard front to back foolscap file storage. Drawers glide smoothly on strong two piece runners and can be removed to assist with relocation.
Brownbuilt mobile pedestals can be easily integrated into any office environment with a range of drawer configurations to suit individual applications, attractive alloy handle design, a premium quality metal construction and a wide selection of standard powder coat finishes.
Standard Features:
Cast alloy handle
Compact side-mounted lock
Full metal construction
Internal carcass assembly
Fully welded top
Strong two-piece "wrap" drawer body
Full height drawer back
Removable drawers
Smooth operating two-piece nylon runners
Runners tested to 50,000 cycles
Strong welded metal base frame
Low profile castors for full mobility
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Cast alloy handle
Compact side-mounted lock
Full metal construction
Internal carcass assembly
Fully welded top
Strong two-piece "wrap" drawer body
Full height drawer back
Removable drawers
Smooth operating two-piece nylon runners
Runners tested to 50,000 cycles
Strong welded metal base frame
Low profile castors for full mobility
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
External Dimensions:
2 Drawer: 715mmH x 453mmW x 620mmD
3 Drawer: 1021mmH x 453mmW x 620mmD
4 Drawer: 1327mmH x 453mmW x 620mmD
Internal Drawer Dimensions:
270mmH x 392mmW x 580mmD
Storage Capacity:
2 Drawer: 1.16 lineal metres
3 Drawer: 1.74 lineal metres
4 Drawer: 2.32 lineal metres
2 Drawer: 715mmH x 453mmW x 620mmD
3 Drawer: 1021mmH x 453mmW x 620mmD
4 Drawer: 1327mmH x 453mmW x 620mmD
Internal Drawer Dimensions:
270mmH x 392mmW x 580mmD
Storage Capacity:
2 Drawer: 1.16 lineal metres
3 Drawer: 1.74 lineal metres
4 Drawer: 2.32 lineal metres
External Dimensions:
2 Drawer: 715mmH x 453mmW x 620mmD
3 Drawer: 1021mmH x 453mmW x 620mmD
4 Drawer: 1327mmH x 453mmW x 620mmD
Internal Drawer Dimensions:
270mmH x 392mmW x 580mmD
Storage Capacity:
2 Drawer: 1.16 lineal metres
3 Drawer: 1.74 lineal metres
4 Drawer: 2.32 lineal metres
2 Drawer: 715mmH x 453mmW x 620mmD
3 Drawer: 1021mmH x 453mmW x 620mmD
4 Drawer: 1327mmH x 453mmW x 620mmD
Internal Drawer Dimensions:
270mmH x 392mmW x 580mmD
Storage Capacity:
2 Drawer: 1.16 lineal metres
3 Drawer: 1.74 lineal metres
4 Drawer: 2.32 lineal metres
External Dimensions:
Height: 535mm/680mm
Width: 487mm
Depth: 535mm
Internal Drawer Dimensions:
Legal Drawer: 109mmH x 392mmW x 520mmD
File Drawer: 270mmH x 392mmW x 520mmD
Drawer Configurations:
2 Drawer: Two file drawers (680mmH)
One file drawer/One legal drawer (535mmH)
3 Drawer: Two legal drawers/One file drawer (680mmH)
Three legal drawers (535mmH)
4 Drawer: Four legal drawers (680mmH)
Height: 535mm/680mm
Width: 487mm
Depth: 535mm
Internal Drawer Dimensions:
Legal Drawer: 109mmH x 392mmW x 520mmD
File Drawer: 270mmH x 392mmW x 520mmD
Drawer Configurations:
2 Drawer: Two file drawers (680mmH)
One file drawer/One legal drawer (535mmH)
3 Drawer: Two legal drawers/One file drawer (680mmH)
Three legal drawers (535mmH)
4 Drawer: Four legal drawers (680mmH)
These multi-functional storage units suit personal or communal file access
and provide additional work surfaces or work area partitions.
and provide additional work surfaces or work area partitions.
A progressive ball bearing runner system extends smoothly even when fully loaded to allow complete access to each drawer. Buffers in the runners reduce metal to metal contact for quieter operation and longer drawer life. Brownbuilt’s Lateral filing cabinets have been designed for optimal load carrying capability with welded internal cabinet and base frame assemblies. Drawer bodies are rigid two-piece constructions, with full height sides and backs to prevent file loss.

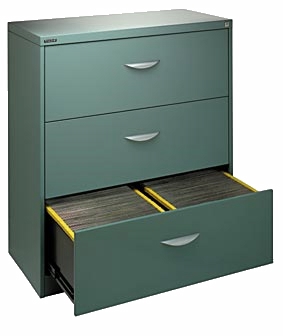

Brownbuilt Lateral filing cabinets have been designed with dimensions that will suit integration into modern workstation and desking layouts. Drawer hanger rails can be configured to provide the ease and accessibility of standard front-to-rear foolscap file storage or laterally across the full width of the drawer.
Brownbuilt Lateral filing cabinets provide superior operator safety, utilising a drawer lock-out mechanism that allows only one drawer to be open at a time. Drawer retention systems within the runner arms prevent drawers from drifting open when fully closed. The base assembly contains adjustable levelling feet to compensate for uneven floor surfaces and prevent tipping.
Brownbuilt Lateral filing cabinets have been designed with dimensions that will suit integration into modern workstation and desking layouts. Drawer hanger rails can be configured to provide the ease and accessibility of standard front-to-rear foolscap file storage or laterally across the full width of the drawer.
Brownbuilt Lateral filing cabinets provide superior operator safety, utilising a drawer lock-out mechanism that allows only one drawer to be open at a time. Drawer retention systems within the runner arms prevent drawers from drifting open when fully closed. The base assembly contains adjustable levelling feet to compensate for uneven floor surfaces and prevent tipping.
External Dimensions:
2 Drawer: 726mmH x 900mmW x 475mmD
3 Drawer: 1030mmH x 900mmW x 475mmD
4 Drawer: 1330mmH x 900mmW x 475mmD
Internal Drawer Dimensions:
270mmH x 830mmW x 415mmD
Storage Capacity:
2 Drawer: 1.66 lineal metres
3 Drawer 2.49 lineal metres
4 Drawer: 3.32 lineal metres
2 Drawer: 726mmH x 900mmW x 475mmD
3 Drawer: 1030mmH x 900mmW x 475mmD
4 Drawer: 1330mmH x 900mmW x 475mmD
Internal Drawer Dimensions:
270mmH x 830mmW x 415mmD
Storage Capacity:
2 Drawer: 1.66 lineal metres
3 Drawer 2.49 lineal metres
4 Drawer: 3.32 lineal metres
Load Capacity: - 44kg per drawer (suspended)
Standard Features:
Individual drawer lock-out mechanism
Alloy drawer handle
Internally assembled cabinet construction
Welded internal cabinet frame
Adjustable foolscap suspension folder storage
Fully extending ball bearing runners
Full height painted drawer back
Adjustable base levelling feet
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Standard Features:
Individual drawer lock-out mechanism
Alloy drawer handle
Internally assembled cabinet construction
Welded internal cabinet frame
Adjustable foolscap suspension folder storage
Fully extending ball bearing runners
Full height painted drawer back
Adjustable base levelling feet
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
Safe, efficient storage of diverse oversize materials ranging from plans, maps,
charts, photographs, engineering drawings, and artwork through to
biological artefacts and geological samples.
charts, photographs, engineering drawings, and artwork through to
biological artefacts and geological samples.

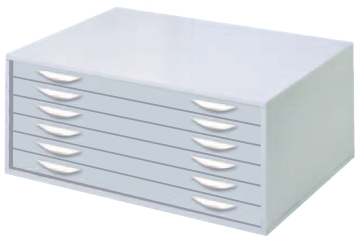

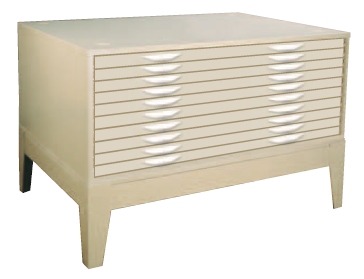

Brownbuilt plan files are available in 6 and 10 drawer configurations with a quality riveted external construction and welded internal support channels for high load capacity. Drawers open smoothly with ball bearing carriage wheels operating on steel tracks, and feature a ramp-stop mechanism to prevent drawers drifting open. Contents are protected in riveted drawer bodies by a hinged front retainer flap and fixed rear hood. Brownbuilt plan file drawers are fitted with two alloy, finger-grip handles to make opening even fully loaded drawers simple. Cabinets are designed with top and bottom nesting domes for safe vertically stacking, and can be ordered with either a welded box stand or raised stand with legs.
External Dimensions:
Height: 555mm
Width: 1355mm
Depth: 960mm
Internal Drawer Dimensions:
PCM6 (6 Drawer): 65mmH x 1270mmW x 890mmD
PCM10 (10 Drawer): 45mmH x 1270mmW x 890mmD
Configurations: 6 Drawer - 10 Drawer
Stand Heights:
PS2 (Without legs): 100mm
PS4 (With legs): 340mm
Height: 555mm
Width: 1355mm
Depth: 960mm
Internal Drawer Dimensions:
PCM6 (6 Drawer): 65mmH x 1270mmW x 890mmD
PCM10 (10 Drawer): 45mmH x 1270mmW x 890mmD
Configurations: 6 Drawer - 10 Drawer
Stand Heights:
PS2 (Without legs): 100mm
PS4 (With legs): 340mm
Shipping Weight: (kilograms)
PCM6: 190kg
PCM10: 250kg
Standard Features:
Two alloy finger grip handles
Ball bearing metal drawer rollers
Rubber drawer track stops
Internal cabinet chassis
Hinged front drawer flap
Rear drawer hood
Reinforced carcass with nesting domes
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
PCM6: 190kg
PCM10: 250kg
Standard Features:
Two alloy finger grip handles
Ball bearing metal drawer rollers
Rubber drawer track stops
Internal cabinet chassis
Hinged front drawer flap
Rear drawer hood
Reinforced carcass with nesting domes
Material Thickness: 0.8mm
Finish: Powder coat (45-50 microns thickness)
11 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
